JAGUAR Practical Lead Free Hot Air F10 Reflow Oven with Up 10 Bottom 10 Heating Zones

Brand Name : JAGUAR

Model Number : F10

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : To be negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Sets per Month

Delivery Time : 2-3 weeks

Packaging Details : Standard Vacuum Inner Packing and Outer Plywood Case

Name : Reflow Soldering Machine

Function : PCB Welding

Heating mode : Up hot air Bottom hot air

Applicable component : 01005 ; 0201 ; 0402

End User : SMT ; SMD ; LED ; SOLAR PV

Heating Element : Modular

Conveyor width adjust : Automatic

Heating zone : Up 10 bottom 10

Application : Heating

Length of heating : 3890mm

Cooling zone : up 2 bottom 2

Frequency converter : Delta

Contact Now

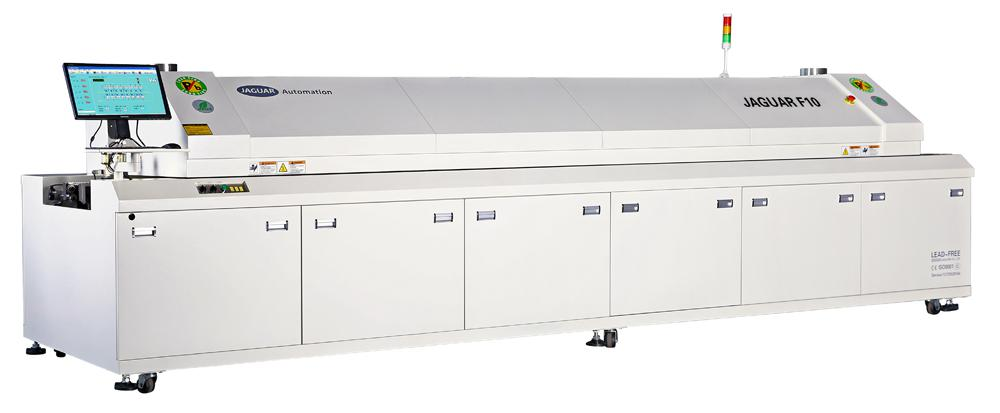

JAGUAR Pratical 10 Zone Lead-free Hot Air Reflow Oven F10

JAGUAR F10 as a memeber of F Series Lead-free Hot Air Reflow Oven, it owns all advantages of F series, with it's smart PC+PLC system control, international advanced hot air technology, energy saving and easy maintenance modular design, already become JAGUAR's best selling series, which is widely used in Telecom., Home Appliances, Multimedia, Power Supply & etc…

JAGUAR Practical Lead Free Hot Air F10 Reflow Oven with Up 10 Bottom 10 Heating Zones

Specification:

Model Jaguar F10

Heating System

 Number of heating zones top 10/ bottom 10
Number of cooling zones 2(top2, bottom 2)
Heating passage 3890mm
Heating style Hot air
Cooling style Forced air cooling
Exhaust Volume 10m³/min * 2 vanes

Conveyor System

 Max. Width of PCB 450mm(on mesh)
Mesh belt width 500mm
Conveyor Direction L→R(option: R→L)
Process Height 900±20mm
Conveyor type Mesh and chain
Range of rail width 50-400mm
Conveyor speed 0-1800mm/min
Auto/manual Lubrication Standard
Fixed track Front track fixed(option: rear track fixed)
Product clearance Top and bottom 25mm

Control system

 Power supply 5 line 3 phase 380V 50/60HZ
Total power 48KW
Startup power 40KW
Steady consumption 8KW
Ramp up time 20 mins
Temp. setting range From room temp. To 300℃
Temp. control method PID close loop control & SSR driving
Temp. control precision ±1℃
Temp. deviation on PCB ±2℃
Data storage Process Data and status storage(80GB)
Nozzle plate Aluminum Alloy Plate
Abnormal Alarm Abnormal temperature (overtemp/low temperature)
Board dropped alarm

Tower light:

Amber-warming, Green-normal, Red-abnormal

General

 Dimension(L*W*H) 5000*1320*1490mm
Weight 2000kg
Color Computer gray

JAGUAR Practical Lead Free Hot Air F10 Reflow Oven with Up 10 Bottom 10 Heating Zones

70% Electrica spare parts are using international brand, details as below:

No. Spares Name Brand Origin
1 Heating Tube Hotset Germany
2 Intermediate relay CHNT China
3 Contactor CHNT China
4 Power supply MW Taiwan,China
5 Binding post Phoenix America
6 Inverter Delta Taiwan,China
7 Solid-state Relay Carlo Switzerland
8 Emergency button Schneider France
9 LED Tricolor light tower Skoda China
10 Conveyor motor/Tooth box Panasonic Japan
11 High Temperature motor Sanyue Taiwan,China
12 Thermal fuse Hotset Germany
13 Connecting shackle KMC Taiwan
14 High temperature cable Hotset Germany
15 Fan Sunon Taiwan,China
16 Mesh belt KMC Taiwan,China
17 Display Lenovo China
18 Computer Lenovo China
19 PLC Siemens Germany
20 Chain KMC Taiwan,China
21 Guide rail JAGUAR China

OPTIONS

1.Automatic PCB throughtput sensors easy to know PCB output

JAGUAR Practical Lead Free Hot Air F10 Reflow Oven with Up 10 Bottom 10 Heating Zones

2. Sectional contructure guide rail

JAGUAR Practical Lead Free Hot Air F10 Reflow Oven with Up 10 Bottom 10 Heating Zones

3. Herringbone constructure mesh belt

JAGUAR Practical Lead Free Hot Air F10 Reflow Oven with Up 10 Bottom 10 Heating Zones

4.Centrol support system

JAGUAR Practical Lead Free Hot Air F10 Reflow Oven with Up 10 Bottom 10 Heating Zones
