Lead Free 9KW 1 Preheater Flux Spray Wave Solder for LED Driver Assembly

Name: Lead Free 9KW 1 Preheater Flux Spray Wave Solder for LED Driver Assembly
Brand: JAGUAR
Price: 1 USD

Lead Free 9KW 1 Preheater Flux Spray Wave Solder for LED Driver Assembly Manufactures

Brand Name : JAGUAR

Model Number : N200

Certification : CE, ISO

Place of Origin : SHENZHEN, GUANGDONG, CHINA

MOQ : 1set

Price : To be negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30Sets Per Month

Delivery Time : 10-15 Working Days

Packaging Details : Stand Export Package by Vacuum and Plywood Case

Name : Wave Solder

Flux coating mode : Spray

No. of preheater : 1

Preheating mode : Hot air

Preheating length : 500mm

Wave mode : Dual wave, Spoiler waves, mirror waves

Volume of Solder Pot : 180kgs

Temperature rating : 300 degree

Tin melting time : About 2 hours

Finger cleaner : Standard

Operator interface : Button control, can optional Screen or PC control

Machine dimension : 2100*1200*1600mm

Contact Now

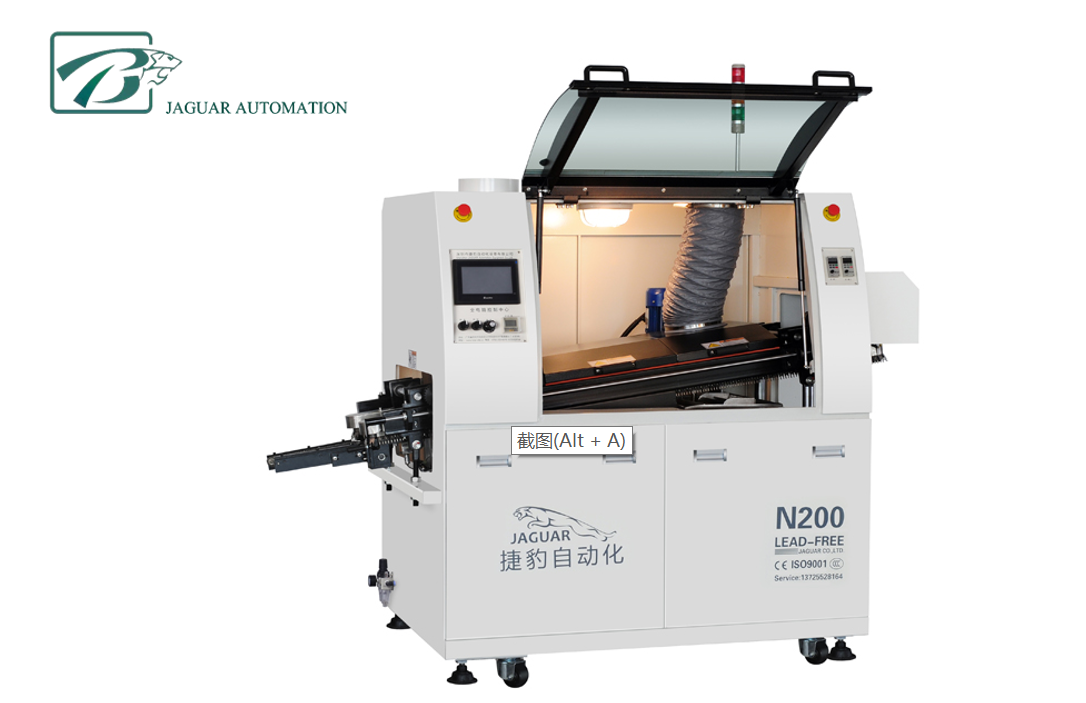

JAGUAR Lead-free Hot Air Wave Soldering N200

Designed for Medium or Small Throughput applications and environmental protection
Brings you power reduction & makes production under controlled
Lengthened Hot air structured preheaters in 500mm
Thermal controller front panel operation for STD machine
Option of Touch Screen/Computer controlled
Patented solder pot structure for low solder dross formation rate

Specification:

Model No	JAGUAR N200
Number of Pre-heater	1
Pre-heat Passage	500mm
Body Size	140012001600mm
Outside Dimension	210012001600mm
Weight	700KG
Component Lead	Within 10 mm
Total/steady Consumption	9KW/3-5KW
Air Supply	0.5MPa
Preheating Style	Hot Air
Preheater Consumption	220V 5KW
Control Method	Button+PLC(Option: Touch screen or PC)
Range of Temp. Set Point	Room Temperature---300ºC
Preheating Time	About 10-15mins for Setting 150ºC
Solder Application	Lead-free / Sn-Pb
Solder Pot Capacity	180KG
Solder Pot Temperature	300ºC
Solder Pot Consumption	380V 6KW
Solder Temp. Control method	PID&SSR
Wave Motor Consumption	180Wx2pcs 220V
Solder Melting	About 120mins for Setting 250ºC
PCB Width	50-200mm
Conveyor Speed	300-1800mm/min
Conveyor Direction	L→R (R→L optional)
Solder Angel	4-7 º
Flux Pressure	3-5 Bar
Flux Capacity	3.2L

Introduction:
1. Automatic conveying power system and auto synchronous board feeding functions.

2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.

3. Fluxer system using transverse Japanese spray nozzle, driven by stepper motor and PLC control, accurate and reliable.

4. PLC is used to control the machine, to ensure the reliability and stability of the system.

5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.

6. Special alloy solder fingers, strengthened double v-groove.

7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.

8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.

9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

10.Timer startup feature for solder pot, solder melted within 90 minutes.

11. Automatic finger cleaner ensure the cleanliness of solder fingers.

12. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

Button Style

Lead Free 9KW 1 Preheater Flux Spray Wave Solder for LED Driver Assembly

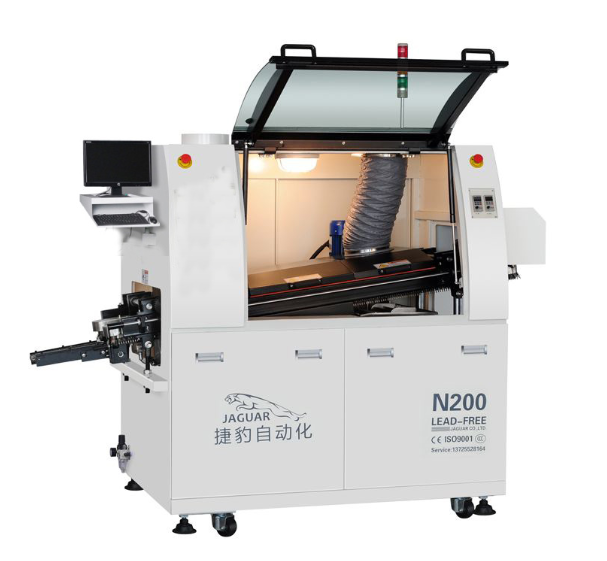

Screen Style

PC Style

Lead Free 9KW 1 Preheater Flux Spray Wave Solder for LED Driver Assembly

Technology Upgrade of Flux Spray System

Stepper motor driven, spray area and deepness adjustable
Japan spray nozzle, nozzle has self-clean function
Flux collect tray drawer design, easy to clean
Flux spray system equiped intelligent PCB recognition, automatic start and stop spray.
